6ES7135-6HD00-0BA1 Siemens Analog Output Module

In stock
Manufacturer:
Siemens
Product No.:
6ES7135-6HD00-0BA1
Condition:
In Stock
Product Type:
Analog Output Module
Product Origin:
FR
Weight:
31g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Product Overview

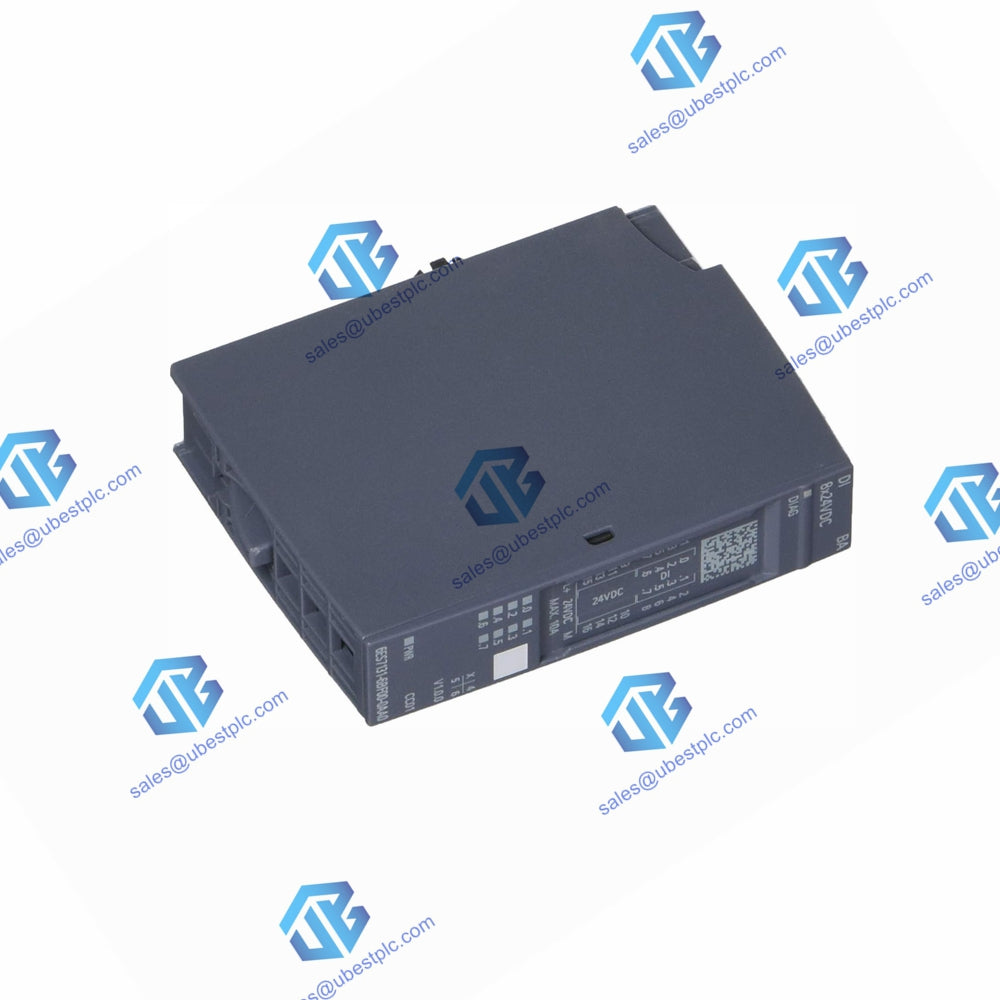

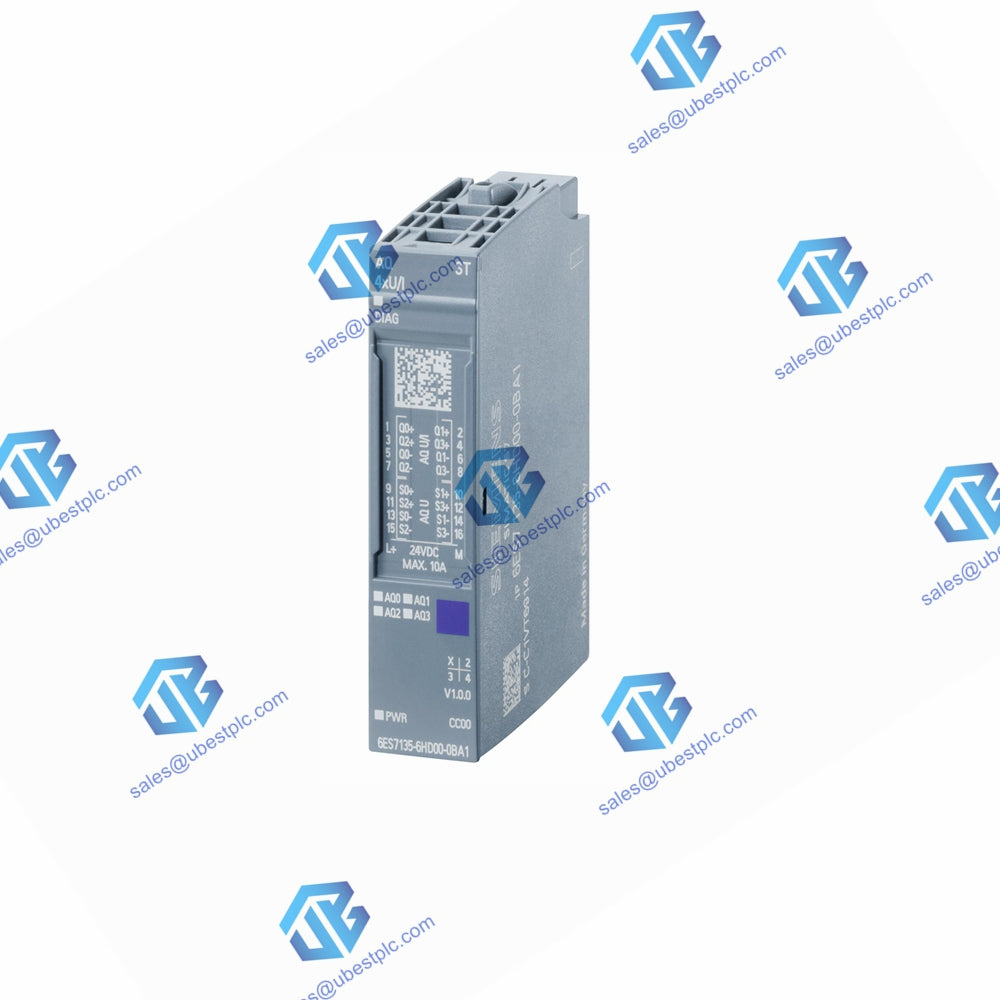

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module

Specifications

Parameter Value
Supply voltage
  • 24 V DC (Rated value)
  • Valid range: 19.2 V - 28.8 V
  • Reverse polarity protection: Yes
Input current Current consumption, max.: 150 mA
Power loss Typical: 1.5 W
Address area Address space per module: 8 bytes; + 1 byte for QI information
Analog outputs
  • Number of outputs: 4
  • Voltage output short-circuit current, max.: 45 mA
  • Cycle time (all channels), min.: 5 ms
Output ranges, voltage
  • 0 to 10 V: Yes; 15 bits
  • 1 to 5 V: Yes; 13 bits
  • -5 to +5 V: Yes; 15 bits including sign
  • -10 to +10 V: Yes; 16 bits including sign
Output ranges, current
  • 0 to 20 mA: Yes; 15 bits
  • -20 to +20 mA: Yes; 16 bits including sign
  • 4 to 20 mA: Yes; 14 bits
Connection of actuators
  • For voltage output two-wire connection: Yes
  • For voltage output three-wire connection: Yes
  • For voltage output four-wire connection: Yes
  • For current output two-wire connection: Yes
Load resistance (in nominal range of the output)
  • For voltage outputs, min.: 2 kΩ
  • For voltage outputs, capacitive load, max.: 1 µF
  • For current outputs, max.: 500 Ω
  • For current outputs, inductive load, max.: 1 mH
Destruction limit for externally applied voltages and currents Voltages at the outputs: 30 V
Cable length Cable length shielded, max.: 1000 m; 200 m for voltage output
Analog value formation
  • Oscillation time for resistive load: 0.1 ms
  • Oscillation time for capacitive load: 1 ms
  • Oscillation time for inductive load: 0.5 ms
Errors/accuracies
  • Linearity error (in relation to output range): ±0.03 %
  • Temperature error (in relation to output range): 0.005 %/K
  • Crosstalk between outputs, min.: -50 dB
  • Repeat accuracy in settled state at 25 °C (in relation to output range): ±0.05 %
Operational limit in the entire temperature range
  • Voltage in relation to output range: ±0.5 %
  • Current in relation to output range: ±0.5 %
Permitted potential difference Between different circuits: 75 VDC / 60 VAC (basic isolation)
Insulation Insulation tested with 707 VDC (type test)
Environmental conditions
  • Operating temperature horizontal installation: 0 ℃ - 60 ℃
  • Operating temperature vertical installation: 0 ℃ - 50 ℃
Dimensions Width: 15 mm
Weights Approx. weight: 31 g
