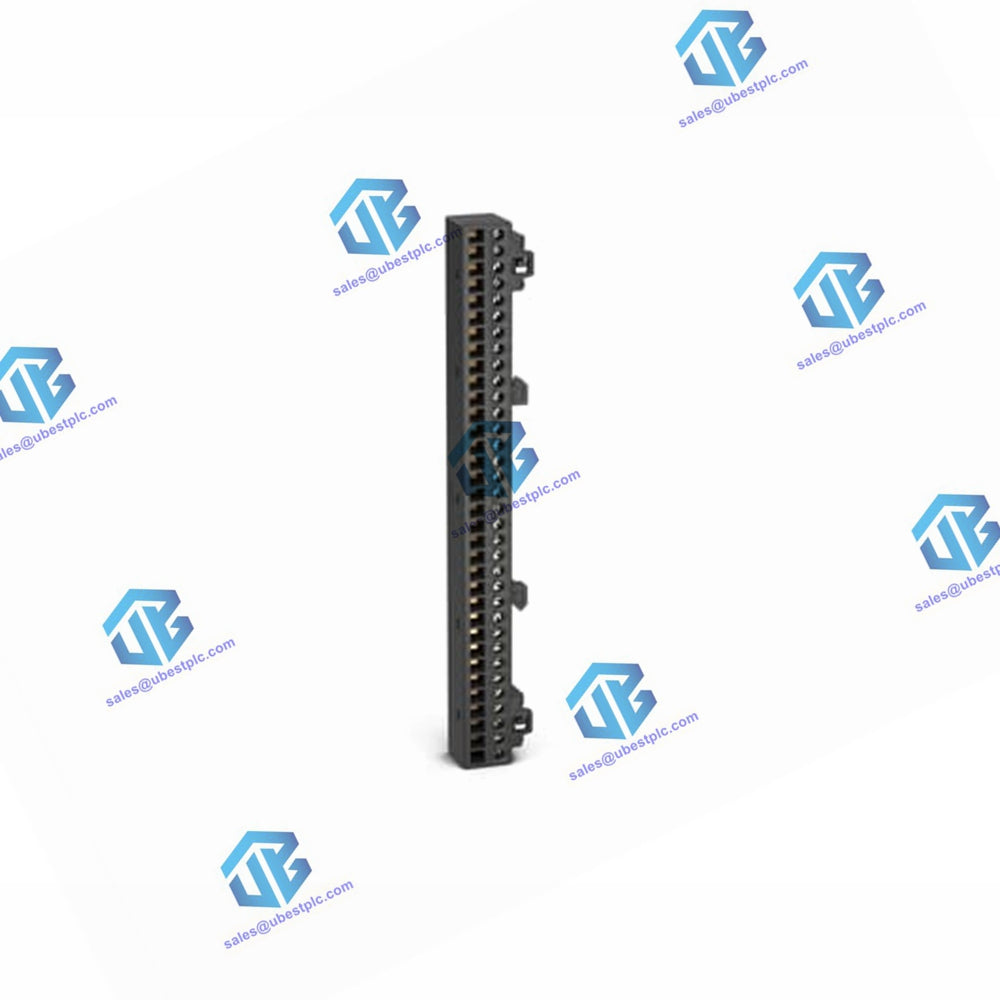

GTB810 Grounding Terminal Bar

General Info

• Article Number: 3BSE078722R1
• Type: Grounding Terminal Bar
• Mechanics: Select I/O

Detailed Data

Installation in Hazardous Area/Locations: Yes/Yes

Environment and Certification

• Temperature, Operating: -40 °C (-40 °F) to +70 °C (158 °F)
• Temperature, Storage: -40 °C (-40 °F) to +85 °C (185 °F)
• Pollution Degree: Pollution Degree 2 acc. to IEC 60664-1
• Relative Humidity: 5 to 95 %, non-condensation
• Altitude: -1000 to 5000 m (restrictions apply)
• Mechanical Operating Conditions: IEC 61131-2
• EMC: IEC/EN 61000-6-4, IEC/EN 61000-6-2
• Overvoltage Categories: Category II acc. to IEC 60664-1
• Protection Class: IP20 acc. to IEC 60529
• CE-Marking: Yes
• UKCA: Yes

Electrical Safety

• IEC/EN 61010-1
• UL 61010-1
• CSA-C22.2 No. 61010-1-12
• IEC/EN 61010-2-201
• UL 61010-2-201
• CSA C22.2 No. 61010-2-201

Marine Certification

DNV, ABS

Corrosive Atmosphere

G3

RoHS Compliance

EU RoHS, UAE RoHS, CN RoHS

WEEE Compliance

EU

Hazardous Area Certifications

• ATEX:
  • II 3G Ex nA IIC T4 Gc
  • II 3G Ex ec IIC T4 Gc
  • II 3G Ex ic nA IIC T4 Gc
  • II 3G Ex ic ec IIC T4 Gc
• IECEx:
  • II 3G Ex nA IIC T4 Gc
  • II 3G Ex ec IIC T4 Gc
  • II 3G Ex ic nA IIC T4 Gc
  • II 3G Ex ic ec IIC T4 Gc
• Hazardous Location US/CAN:
  • cULus
  • CL I, ZN 2, AEx ec IIC T4 Gc, Ex ec IIC T4 Gc X
  • CL I, ZN 2, AEx nA IIC T4 Gc, Ex nA IIC T4 Gc X
  • CL I, DIV 2, Groups A-D T4
• Hazardous Area CCC:
  • Ex ec IIC T4 Gc
  • Ex ec ic IIC T4 Gc

Dimensions

• Width: 21.9 mm
• Depth: 17.2 mm
• Height: 165.5 mm
• Weight (including base): 109 g
