Overview

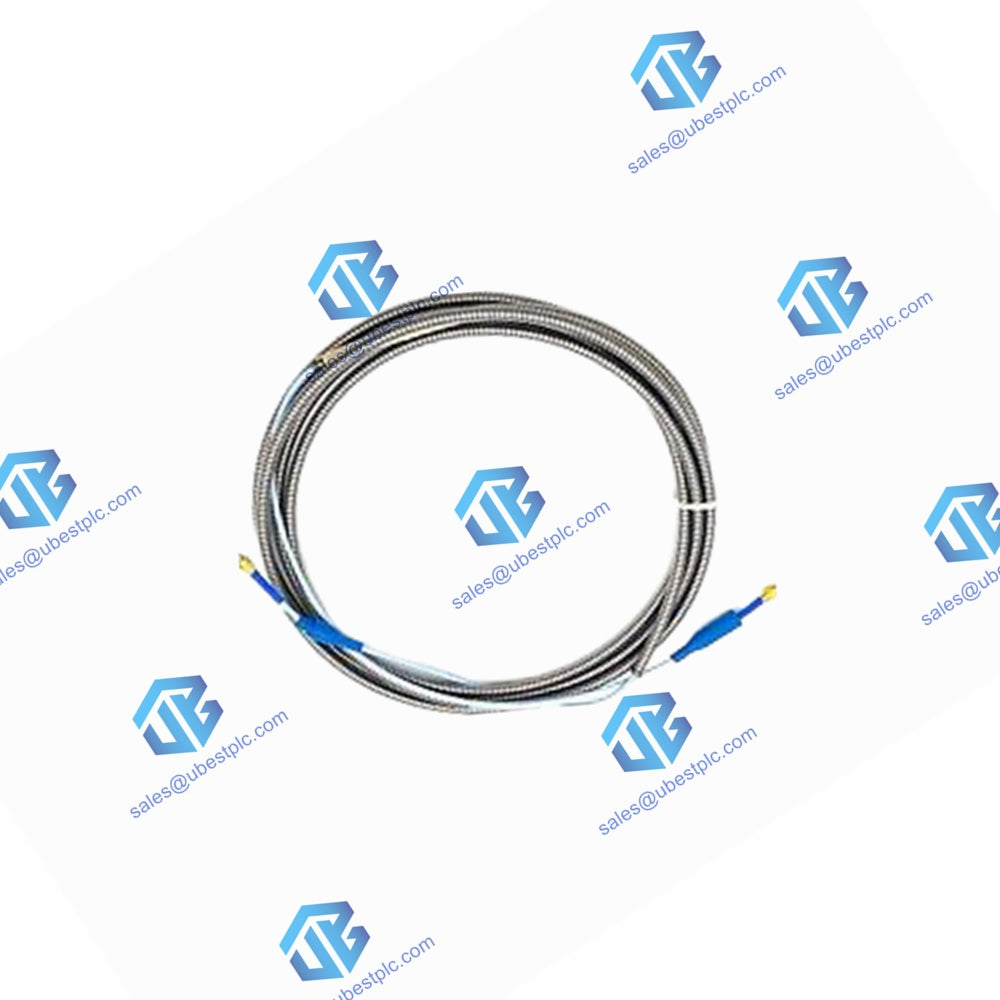

The Bently Nevada 330130-075-11-00 Extension Cable, proudly made in the USA, is integral for connecting 3300 XL proximity sensors to the monitoring system. This cable is designed for durability and high performance, featuring an armored FluidLoc cable option to prevent liquid ingress. It is suitable for environments typically ranging from +18°C to +27°C (+64°F to +80°F) at altitudes up to 2000 meters.

Technical Specifications

• Manufacturer: Bently Nevada

• Product Number: 330130-075-11-00

• Product Type: Extension Cable

• Cable Length Option: 075 (7.5 meters / 24.6 feet)

• Connector Protector and Cable Option: 11 (Armored FluidLoc)

• Approvals: 00 (Not required)

• Weight:

  • 103 g/m (1.5 oz/ft)
  • 0.772 kg

• Resistance:

  • Nominal Extension Cable DC Resistance:
    • RCORE (Ω):
      • Length of Cable (7.5 m): 1.65 ± 0.25
    • RJACKET (Ω):
      • Length of Cable (7.5 m): 0.49 ± 0.10

• Power Requirements:

  • -17.5 Vdc to -26 Vdc at 12 mA maximum consumption
  • -23 Vdc to -26 Vdc with barriers

• Output Resistance: 50 Ω

• Capacitance: 69.9 pF/m (21.3 pF/ft) typical

• Field Wiring Recommendations:

  • Wire size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Use 3 conductor shielded triad cable
  • Maximum length of 305 meters (1,000 feet)

• Linear Range:

  • 2 mm (80 mils)
  • begins at approximately 0.25 mm (10 mils) from the target
  • spans from 0.25 to 2.3 mm (10 to 90 mils)

FAQ

1. What is the cable length of the 330130-075-11-00?
   The cable length is 7.5 meters (24.6 feet).

2. What type of environments is this cable suitable for?
   It operates effectively between +18°C and +27°C (+64°F to +80°F) at altitudes of up to 2000 meters.

3. What is the maximum field wiring length?
   The maximum recommended length is 305 meters (1,000 feet).

4. Is silicone tape acceptable for all applications?
   No, silicone tape is not recommended for environments with exposure to turbine oil.
