Overview

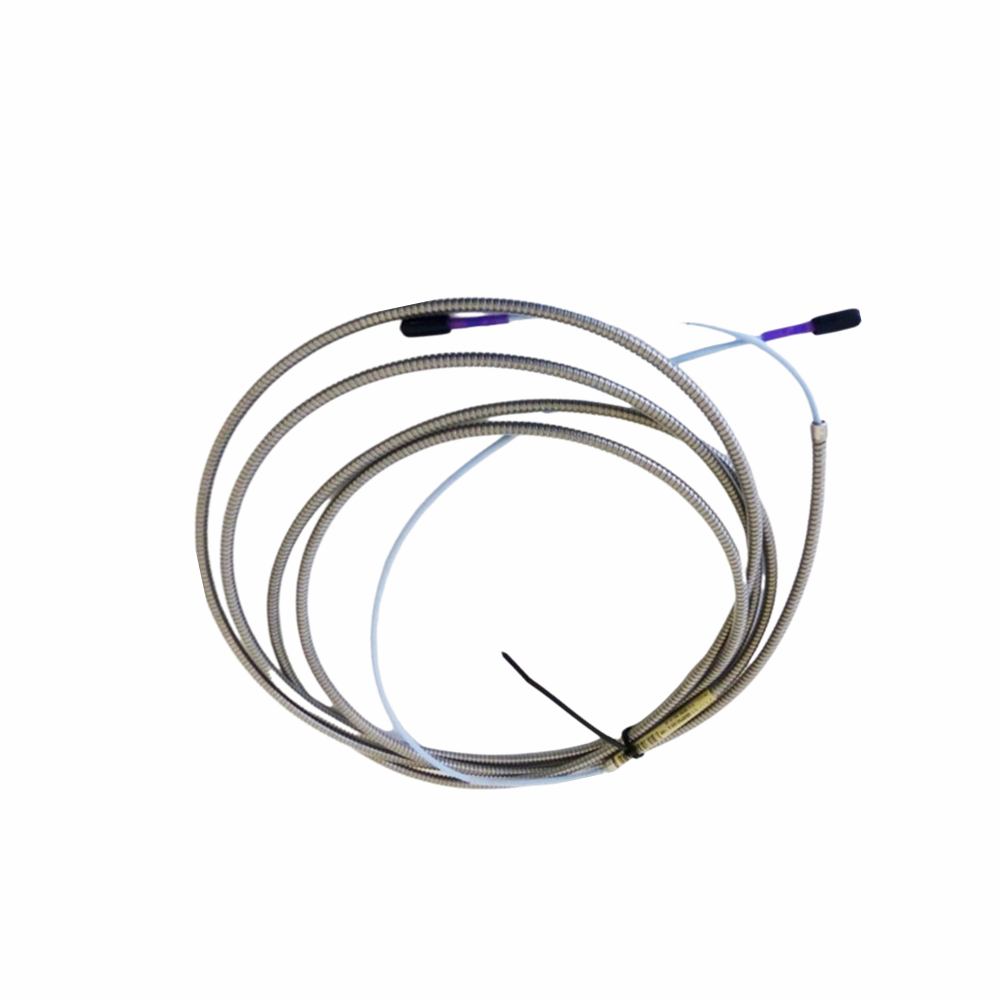

The Bently Nevada 330130-035-11-00 Extension Cable is a robust and highly reliable component designed for precise connectivity in industrial monitoring systems. This extension cable is specifically engineered to complement the 3300 XL 8 mm Proximitor Sensor systems, ensuring seamless operation across various demanding environments. With its armored FluidLoc option, it effectively prevents oil and fluid migration, enhancing reliability in turbine applications.

Key Features

• Brand and Model: Bently Nevada 330130-035-11-00
• Cable Length: 3.5 meters (13.1 feet)
• Connector Type: Armored FluidLoc cable for superior durability
• Approvals: No specific certifications required (option 00)
• Weight:

  • 103 g/m (1.5 oz/ft), approximately 0.36 kg

Technical Specifications

• Resistance:
  • Center Conductor to Center Conductor (RCORE): 0.77 ± 0.12 Ω at 3.5 m
  • Outer Conductor to Outer Conductor (RJACKET): 0.23 ± 0.05 Ω at 3.5 m
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical value
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG) recommended
  • Maximum wiring length: 305 meters (1,000 feet)
• Power Supply Requirements:
  • -17.5 Vdc to -26 Vdc for standard systems
  • -23 Vdc to -26 Vdc when used with barriers

Design Enhancements

• TipLoc and CableLoc Technologies:
  • Patented TipLoc provides a secure bond between the probe tip and body.
  • CableLoc ensures a pull strength of 330 N (75 lbf), delivering increased reliability under mechanical stress.
• FluidLoc Technology: Optional feature to prevent fluid migration through the cable's interior.

Applications

• Ideal for systems utilizing 3300 XL 8 mm Proximitor Sensors.
• Suitable for turbine monitoring and other industrial environments where fluid resistance is critical.
