Technical Specifications:
Manufacturer:
Allen-Bradley
Product Type:
Controller Module

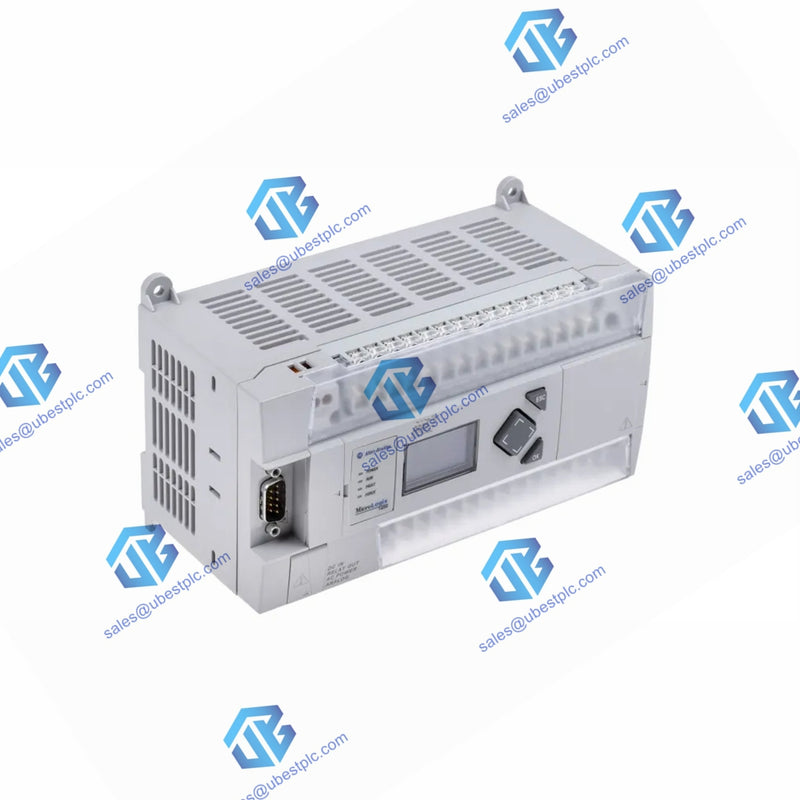

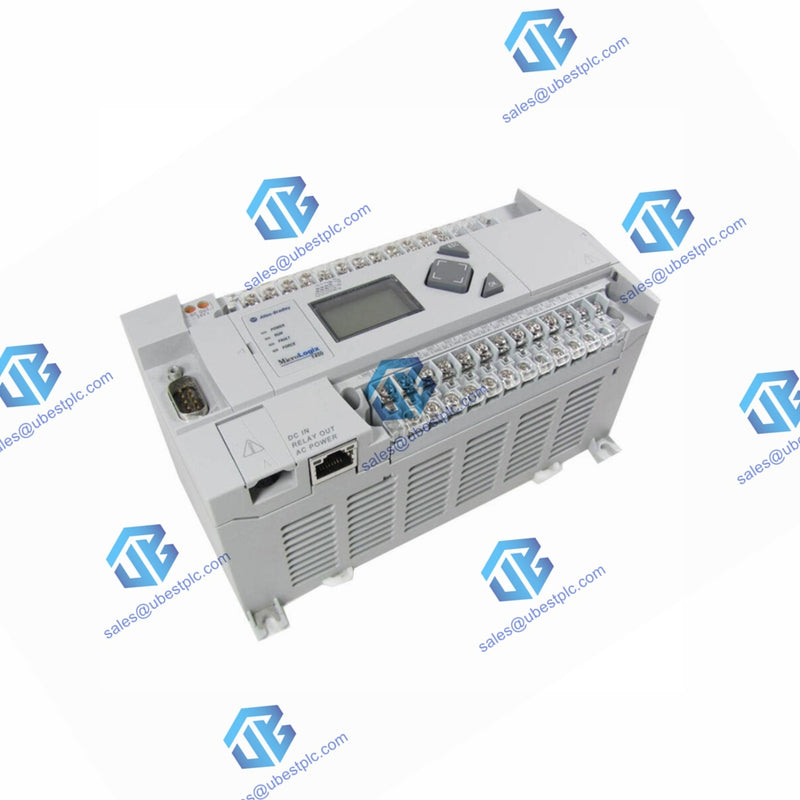

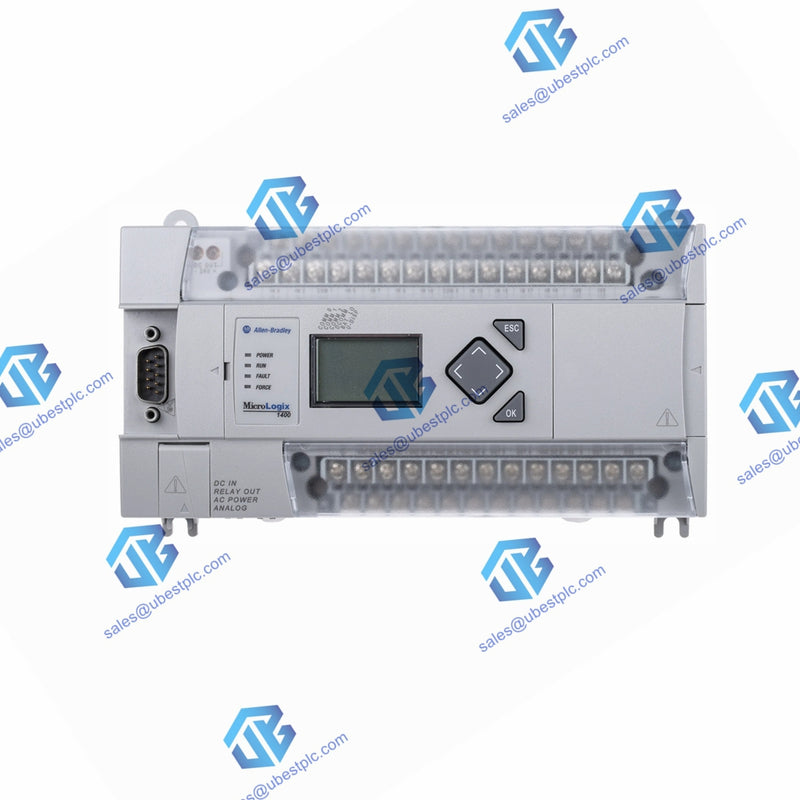

Allen-Bradley Specifications - 1766-L32BWA Module
| Attribute |
1766-L32BWA Specifications |
| Dimensions (H x W x D) |
90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in.) |
| Shipping Weight |
0.9 kg (2.0 lbs) |
| Number of I/O |
24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog) |
| Power Supply Voltage |
100…240V AC @ 47…63 Hz |
| Power Supply Inrush Current |
120V AC: 25 A for 8 ms
240V AC: 40 A for 4 ms |
| Power Consumption |
120 VA |
| 24V DC Sensor Power |
24V DC @ 250 mA, 400 µF max |
| Input Circuit Type |
Digital: 24V DC sink/source (standard and high-speed)
Analog: 0…10V DC |
| Output Circuit Type |
Relay / Relay-FET |
| Relay Life - Electrical |
2 x 105 operations min (2.5 A, 250V AC/30V DC) |
| Enclosure Type Rating |
None (open-style) |
| Wire Size |
0.25…2.5 mm2 (22…14 AWG) solid or stranded copper wire rated @ 90 °C (194 °F) or greater |
| Wiring Category(1) |
2 - on signal ports
2 - on power ports
3 - on communications ports |
| Terminal Screw Torque |
0.79 N•m (7.0 lb•in) rated |
| Voltage Input Range |
0…10.0V DC - 1 LSB |
| Type of Data |
12-bit unsigned integer |
| Input Coding |
0…4,095 (0…10V DC - 1 LSB) |
| Voltage Input Impedance |
>199 kΩ |
| Input Resolution |
12 bit |
| Non-linearity |
±1.0% of full scale |
| Overall Accuracy |
-20…+60 °C (-4…+140 °F) ±1.0% of full scale |
| Voltage Input Overvoltage Protection |
10.5V DC |
| Field Wiring to Logic Isolation |
Non-isolated with internal logic |
