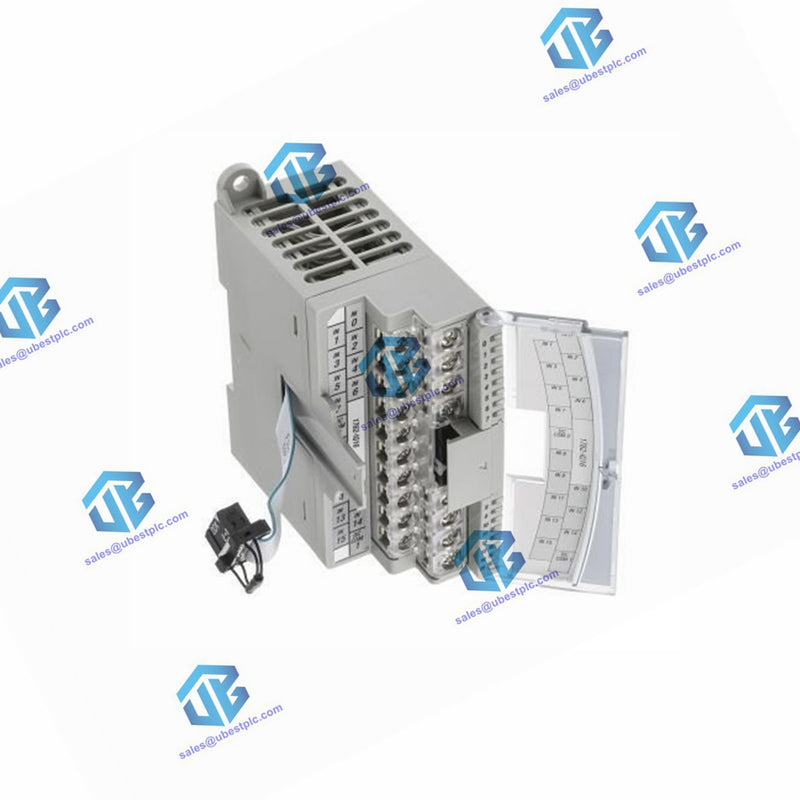

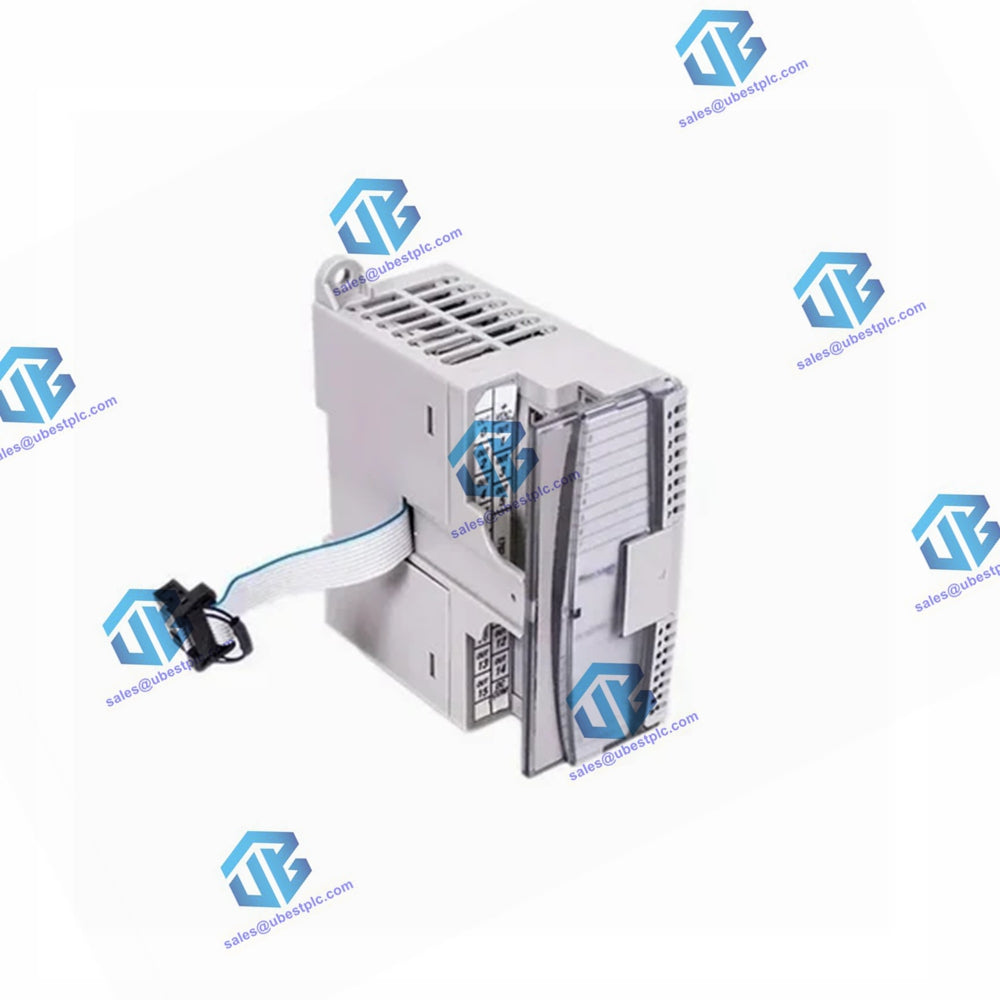

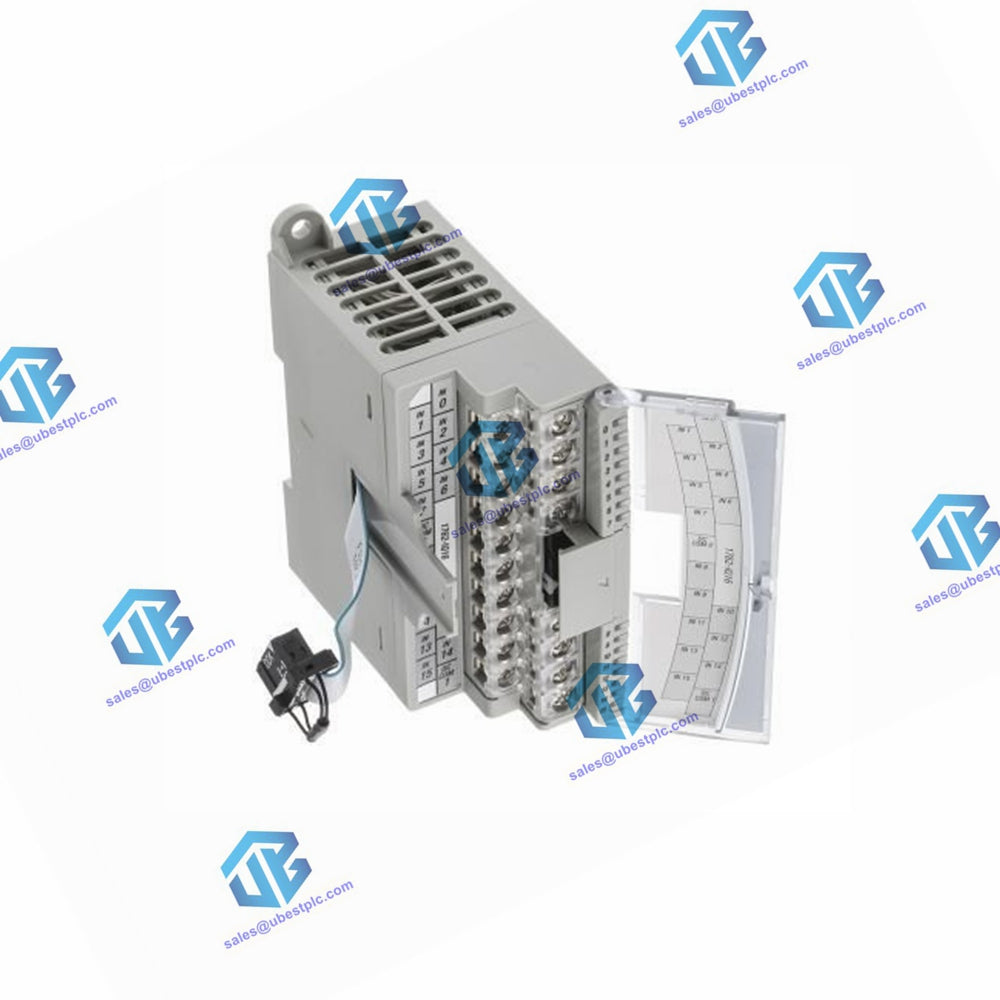

1762-IQ8 Allen-Bradley | DC Input Module
1762-IQ8 Allen-Bradley | DC Input Module
Technical Specifications:
Manufacturer:
Allen-Bradley
Product No.:
1762-IQ8
Condition:
In Stock
Product Type:
DC Input Module
Product Origin:
USA
Weight:
200g
Shipping port:
Xiamen
Warranty:
12 months
1762-IQ8 DC Input Module General Specifications
Allen-Bradley Dimensions & Weight
| Dimensions: | 90 mm (H) x 87 mm (D) x 40 mm (W) 3.543 in. (H) x 3.425 in. (D) x 1.575 in. (W) |
| Height including mounting tabs: | 110 mm (4.33 in.) |
| Approximate Shipping Weight: | 200 g (0.44 lbs.) |
Allen-Bradley Environmental Specifications
| Storage Temperature: | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature: | 0°C to +55°C (-32°F to +131°F) |
| Operating Humidity: | 5% to 95% non-condensing |
| Operating Altitude: | 2000 meters (6561 feet) |
| Vibration: | Operating: 10 to 500 Hz, 5G, 0.030 in. max. peak-to-peak |
| Shock: | Operating: 30G panel mounted |
Allen-Bradley Electrical Specifications
| Voltage Category: | 24V DC (sink/source) |
| Operating Voltage Range: | 10 to 30V DC at 30°C (86°F) 10 to 26.4V DC at 55°C (131°F) |
| Number of Inputs: | 8 |
| Bus Current Draw (max.): | 50 mA at 5V DC (0.25W) |
| Heat Dissipation (max.): | 3.7 Total Watts |
| Signal Delay (max.): | On Delay: 8.0 ms Off Delay: 8.0 ms |
| Off-State Voltage (max.): | 5V DC |
| Off-State Current (max.): | 1.5 mA |
| On-State Voltage (min.): | 10V DC |
| On-State Current: | 2.0 mA min. at 10V DC 8.0 mA nominal at 24V DC 12.0 mA max. at 30V DC |
| Inrush Current (max.): | 250 mA |
| Nominal Impedance: | 3K Ω |
| IEC Input Compatibility: | Type 1+ |
Allen-Bradley Isolation & Certification
| Power Supply Distance Rating: | 6 |
| Isolated Groups: | Group 1: inputs 0 to 7 (internally connected commons) |
| Input Group to Backplane Isolation: | 1200V AC for 1 sec. or 1697V DC for 1 sec. 75V DC working voltage (IEC Class 2 reinforced insulation) |
| Agency Certification: | C-UL certified (under CSA C22.2 No. 142) UL 508 listed CE compliant |
| Hazardous Environment Class: | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Noise Immunity: | NEMA standard ICS 2-230 |
| Radiated and Conducted Emissions: | EN50081-2 Class A |
| Electrical / EMC: |
ESD Immunity (IEC1000-4-2): 4 kV contact, 8 kV air, 4 kV indirect Radiated Immunity (IEC1000-4-3): 10 V/m, 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier Fast Transient Burst (IEC1000-4-4): 2 kV, 5 kHz Surge Immunity (IEC1000-4-5): 2 kV common mode, 1 kV differential mode |
