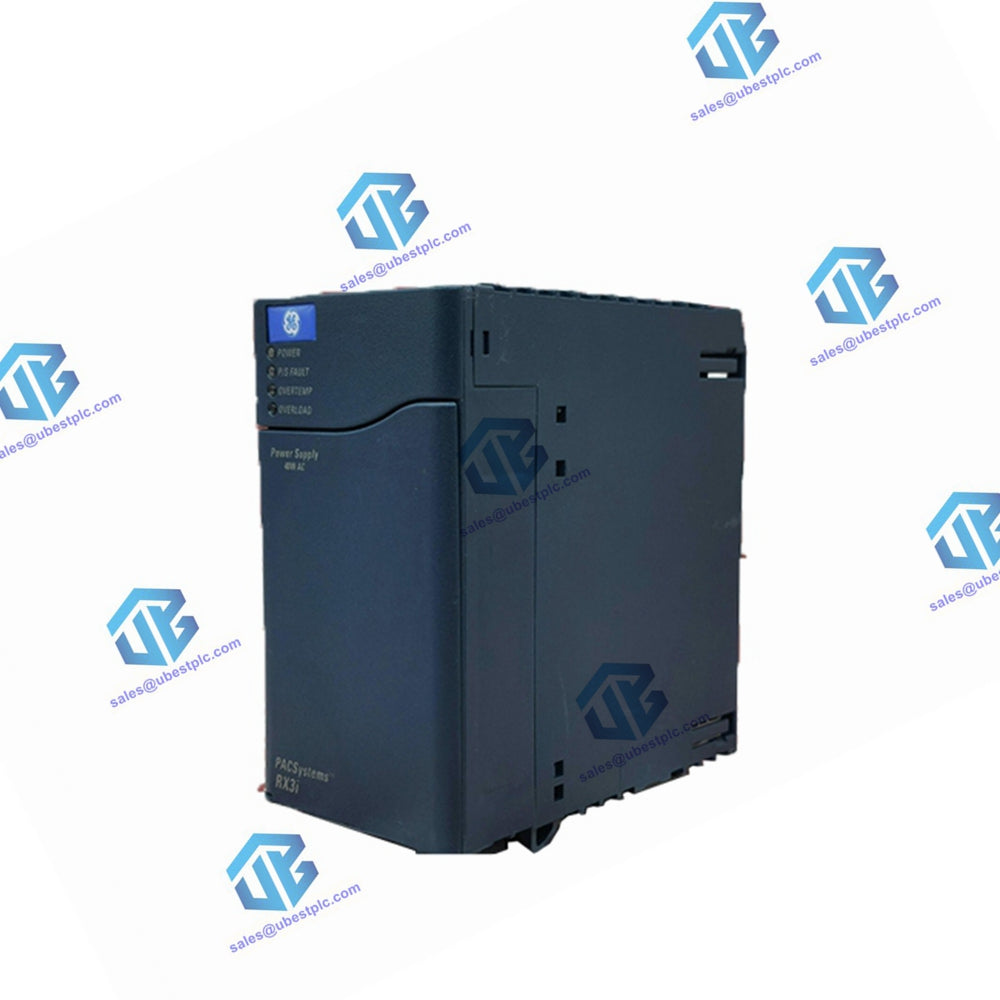

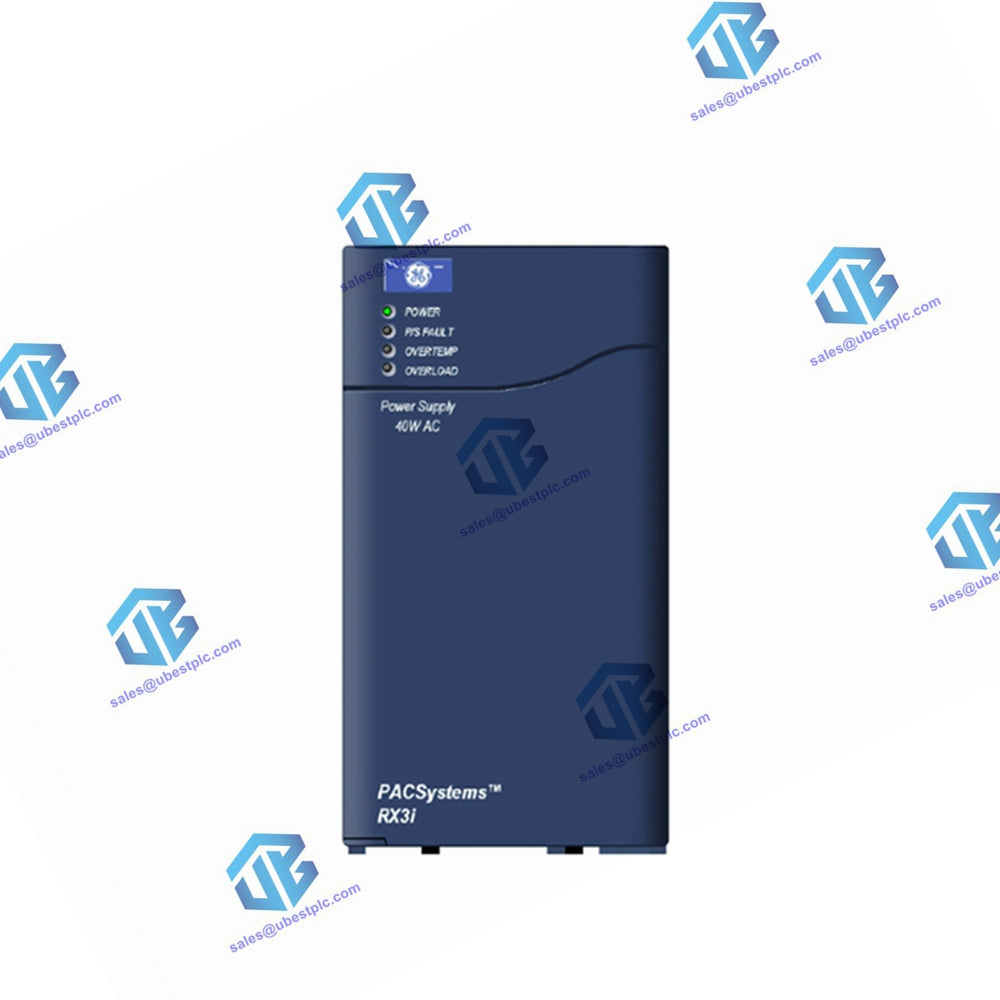

GE Fanuc IC695PSA140 RX3i Power Supply Module

Overview

The RX3i power supply modules simply snap in just like I/O, and they work with any model CPU. Each version provides auto-ranging, so there is no need to set jumpers for different incoming power levels, and they are current limiting so a direct short will shut the power supply down to avoid damage to the hardware. Advanced diagnostics and built-in smart switch fusing are among the other performance and safety features. The multipurpose power supplies can be configured for incremental capacity or redundancy.

Product Name

Multipurpose Power Supply, 120/240 VAC, 125 VDC. Supports multiple multi-purpose power supplies.

Lifecycle Status : Active

Module Type: Universal Base Power Supply

Backplane Support: Universal Backplane Only. Uses PCI Bus.

Number of Slots Module Occupies on Backplane: 2

Power Source: 100-240 VAC or 125 VDC

Redundant and Added Capacity Support:

Yes, Up to 4 Multipurpose power supplies supported on a Universal base.

Output Source

• 40 watts total
• 30 watts max at 3.3 VDC
• 30 watts max at 5 VDC
• 40 watts at 24 VDC Relay, no 24 VDC isolated available

Number of Redundant Power Supplies Supported:

Two Multipurpose Power Supplies are supported on the Universal Base configured for redundancy
