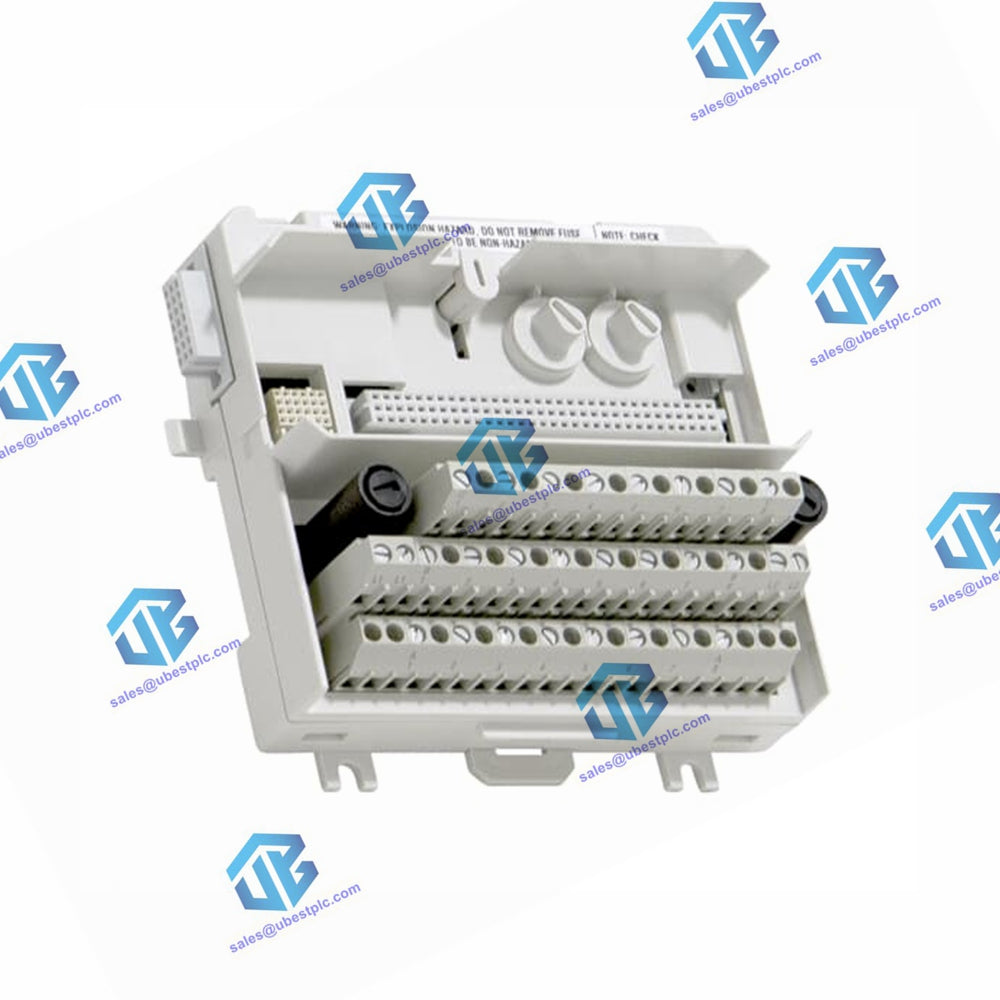

TU839 General Info

Detailed Data

• Article Number: 3BSE046966R1
• Type: Extended
• Connection: Terminal block
• Channels: 8
• Voltage: 250 V
• Mounting: Both directions
• Mounting Detail: 55 °C (131 °F)
• Use with I/O: DI820, DI821and DI825
• Process Connections: 28 (up to 8 I/O channels, 2 terminals per channel)
• 2x6 Process Power Terminals: 0.2 A
• Single/Redundant I/O: Single
• Maximum Current per I/O Channel: 1 A
• Maximum Current Process Connection: 10 A
• Acceptable Wire Sizes: Stranded: 24-14 AWG, 0.2-2.5 mm² (solid and stranded)
• Recommended Torque: 0.5 Nm
• Dielectric Test Voltage: 2300 V a.c. channel to ground, 1350 V a.c. channel to channel

Environment and Certification

• CE Mark: Yes
• Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
• Hazardous Location: -
• Marine Certification: -
• Temperature, Operating: 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
• Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
• Pollution Degree: Degree 2, IEC 60664-1
• Corrosion Protection: ISA-S71.04: G3
• Relative Humidity: 5 to 95 %, non-condensing
• Max Ambient Temperature: 55 °C (131 °F)
• Protection Class: IP20 according to IEC 60529
• Mechanical Operating Conditions: IEC/EN 61131-2
• EMC: EN 61000-6-4, EN 61000-6-2
• Overvoltage Categories: IEC/EN 60664-1, EN 50178
• Equipment Class: Class I according to IEC 61140; (earth protected)
• RoHS Compliance: EN 50581:2012
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 126 mm (5 in.) including connector, 120.5 mm (4.74 in.) edge to edge installed
• Depth: 64 mm (2.52 in.) including terminals
• Height: 110 mm (4.3 in.)
• Weight: 0.28 kg (0.6 lbs)
