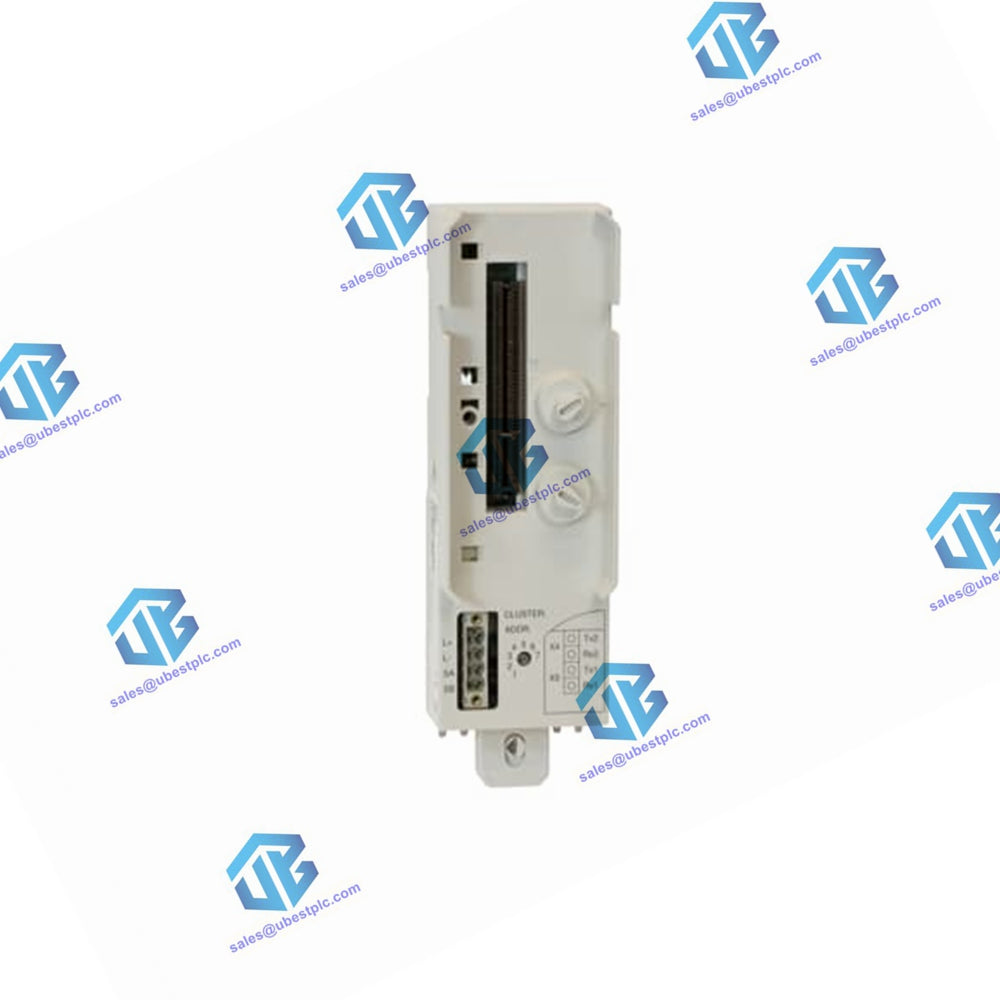

TU807 - General Info

Article Number: 3BSE039025R1
Communication Protocol: Modulebus
Master or Slave: N/A
Hot Swap: No
Used Together with HI Controller: Yes
Power Input: 24 V d.c. (19.2 - 30 V)
Mounting: Vertical or Horizontal

Detailed Data

• Connector: Terminal Block
• 24 V Consumption (typ.): N/A
• ModuleBus Current Distribution:
  • Maximum 5V 1.5 A
  • 24V 1.5 A
• Mechanical Keys: 36 different combinations
• Acceptable Wire Sizes:
  • Solid: 0.2 - 2.5 mm²
  • Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
• Recommended Torque: 0.5 Nm
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V a.c.

Environment and Certification

• CE Marking: Yes
• Electrical Safety Standards:
  • EN 61010-1, UL 61010-1
  • EN 61010-2-201, UL 61010-2-201
• Hazardous Location:
  • cULus Hazardous Location Class 1 Zone 2
  • ATEX Zone 2
• Operating Temperature:
  • 0 to +55 °C (+32 to +131 °F)
  • Approvals issued for +5 to +55 °C
• Storage Temperature:
  • -40 to +70 °C (-40 to +158° F)
• Relative Humidity: 5 to 95%, non-condensing
• Max Ambient Temperature:
  • 55 °C (131 °F)
  • For vertical mounting 40 °C (104 °F)
• Equipment Class: Class I according to IEC 60536 (earth protected)
• Ingress Protection: IP20 according to IEC 60529
• RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 59 mm (1.57”)
• Height: 186.5 mm (7.34”) including latch
• Depth: 47 mm (1.85”)
• Weight: 0.45 kg (0.99 lbs.)
