Product Overview

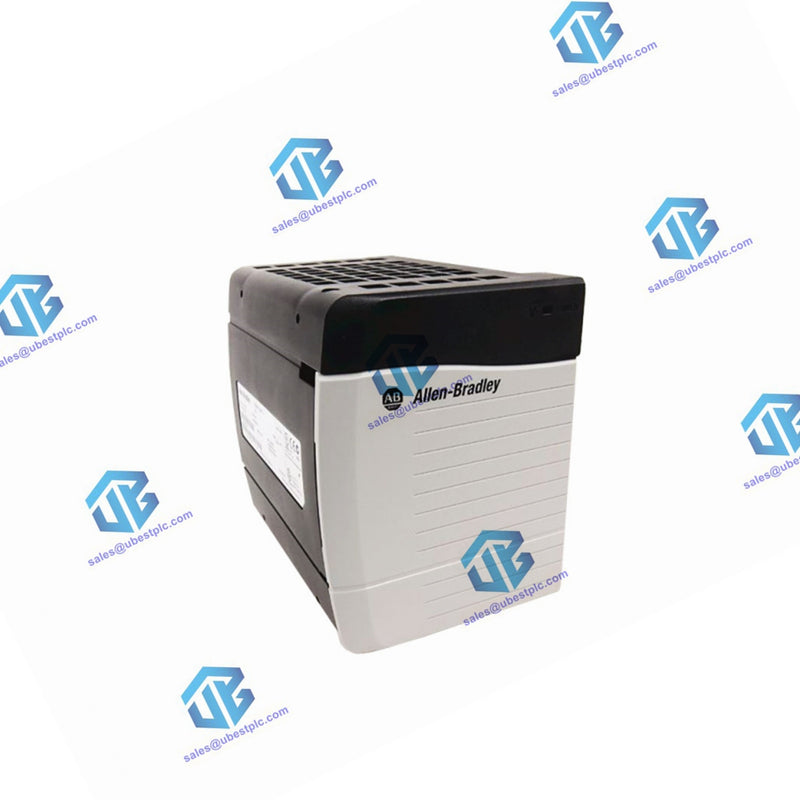

The ControlLogix Power Supplies are essential components designed to provide reliable and efficient power to ControlLogix systems. These power supplies are compatible with both Series A and B ControlLogix chassis and are mounted on the left side of the chassis. They feature robust specifications to meet the demands of various industrial applications.

Key Features

• Mounting Location: Left side of ControlLogix chassis
• Chassis Compatibility: Series A or B
• Input Voltage Range: 18…32V DC
• Input Voltage, Nominal: 24V DC
• Input Frequency Range: DC
• Input Power, Maximum: 95 W
• Output Power, Maximum: 75 W @ 60°C
• Power Dissipation: 20 W @ 60°C
• Power Consumption: 68.2 BTU/hr
• Hold Up Time:
  • 35 ms @ 18V DC
  • 40 ms @ 24V DC
  • 40 ms @ 32V DC
• Inrush Current, Maximum: 30A
• Current Capacity:
  • @ 1.2V: 1.5 A
  • @ 3.3V: 4 A
  • @ 5.1V: 10 A
  • @ 24V: 2.8 A
• Overcurrent Protection, Maximum: 15 A, user-supplied
• Fusing: Non-replaceable fuse soldered in place
• Isolation Voltage: 250 V continuous
• Conductors:
  • Wire Size: #14 AWG
  • Wire Type: Copper
  • Category: 1
  • Screw Torque (Imperial): 7 in·lb
  • Screw Torque (Metric): 0.8 N·m

Physical Dimensions

• Dimensions (H x W x D):
  • Imperial: 5.51 x 4.41 x 5.71 in
  • Metric: 140 x 112 x 145 mm
• Weight:
  • Imperial: 2.10 lb
  • Metric: 1.12 kg

Environmental Conditions

• Operational Temperature:
  • IEC 60068-2-1 (Test Ad, Operating Cold)
  • IEC 60068-2-2 (Test Bd, Operating Dry Heat)
  • IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
  • 0 to 60°C (32 to 140°F)
• Storage Temperature:
  • IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold)
  • IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat)
  • IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock)
  • -40 to 85°C (-40 to 185°F)
• Relative Humidity:
  • IEC 60068-2-30 (Test Db, Unpackaged Non-operating Damp Heat)
  • 5 to 95% non-condensing
• Vibration:
  • IEC 60068-2-6 (Test Fc, Operating): 5g @ 10-500Hz
• Shock:
  • Operating: IEC 60068-2-27 (Test Ea, Unpackaged Shock): 30g
  • Non-operating: IEC 60068-2-27 (Test Ea, Unpackaged Shock): 50g

Emissions and Immunity

• Emissions: CISPR 11, Group 1, Class A
• ESD Immunity: IEC 61000-4-2:
  • 6kV contact discharges
  • 8kV air discharges
• Radiated RF Immunity: IEC 61000-4-3:
  • 10V/m with 1kHz sine-wave 80% AM from 30MHz to 2000MHz
  • 10V/m with 200Hz 50% Pulse 100% AM at 900MHz
  • 10V/m with 200Hz 50% Pulse 100% AM at 1890MHz
• EFT/B Immunity: IEC 61000-4-4:
  • ±4kV at 5kHz on power ports
• Surge Transient Immunity: IEC 61000-4-5:
  • ±1kV line-line (DM) and ±2kV line-earth (CM) on power ports
• Conducted RF Immunity: IEC 61000-4-6:
  • 10Vrms with 1kHz sine-wave 80% AM from 150kHz to 80MHz
• Oscillatory Surge Withstand: IEEE C37.90.1:
  • 3kV

Voltage Variation

• IEC 61000-4-11:
  • 60% dips for 100ms on DC supply ports
  • 100% dips for 50ms on DC supply ports
  • ±20% fluctuations for 15min on DC supply ports
  • 5sec interruptions on DC supply ports
