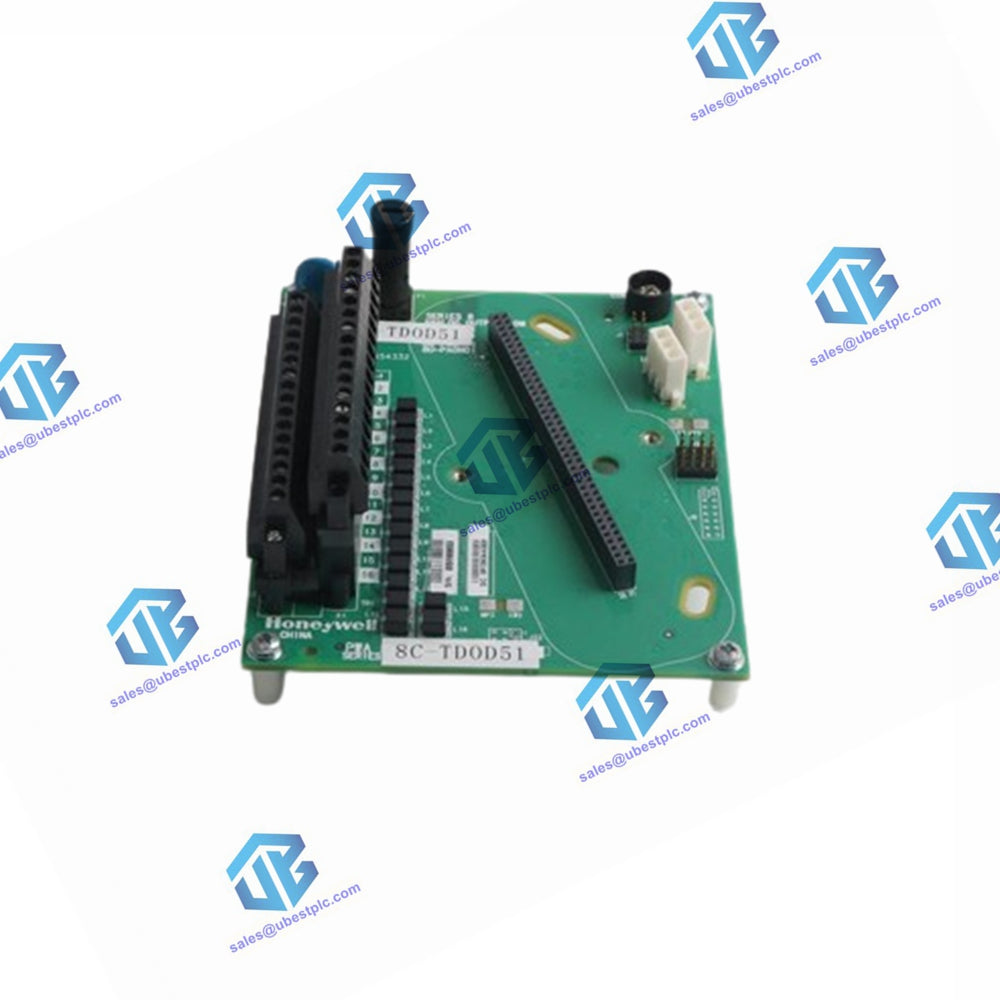

Honeywell 8C-TDOD51 Digital Output Module

Technical Specifications

General

• Part Number: 8C-TDOD51
• Product Type: Digital Output IOTA
• Series: Series 8
• Manufacturer: Honeywell

Input/Output

• Output Channels: 32
• Output Type: Source
• Voltage Rating: 24 VDC
• Module Current Rating: 105mA
• Load Voltage: 30 VDC Maximum
• Load Current: 100mA per channel (Max) and 3.2A per module (Max)
• Galvanic Isolation: 1000 VAC RMS or ±1500 VDC

Electrical Specifications

• On-State Voltage: 24 VDC (typ) (load current @ 0.1A max)
• Off-State Leak Current: 5 µA (max)
• Turn-On/Turn-Off Time: 10 ms (max)
• Gap (0 current) of Output to Field on Switchover: None (0ms) (applies to Redundancy only)

Environmental

• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Storage Temperature: -40 to 80°C (-40 to 176°F)
• Humidity: 0 to 95% RH, non-condensing

Mechanical

• Dimensions: 9" x 2.5" x 0.75" (228.6 x 63.5 x 19.1 mm)
• Weight: 0.7 kg (2.2 lbs)
