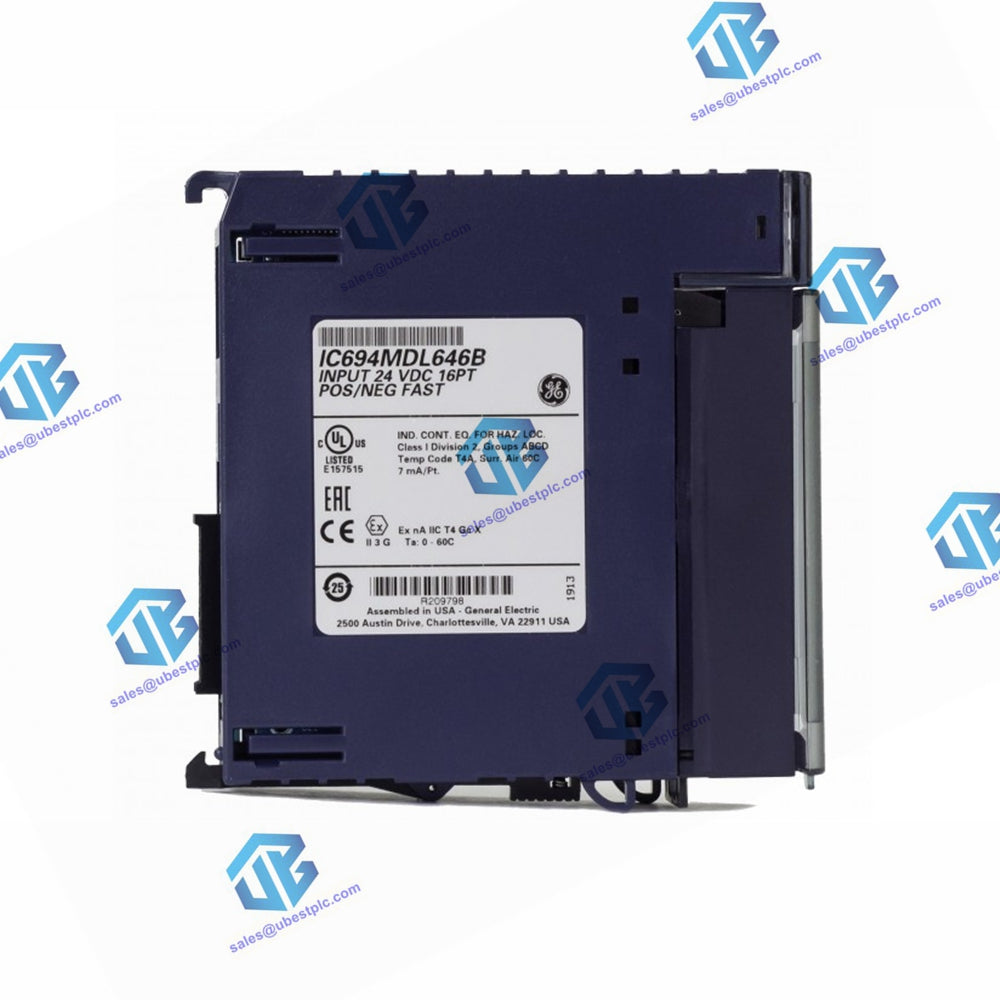

GE Fanuc IC694MDL646 Rx3i PacSystem Input Module
Manufacturer:
GE
Product No.:
IC694MDL646
Condition:
In Stock
Product Type:
Input Module
Product Origin:
USA
Weight:
300g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Overview
The IC694MDL646 is a 24V DC 16 Point Positive/Negative Logic Input Module designed for the GE Fanuc RX3i PacSystem. This module provides 16 input points with a common power input terminal, suitable for a variety of industrial applications.
Key Features
- 16 Input Points: Configurable for positive or negative logic.
- Fast Response Times: Typical on and off response times of 1 ms.
- Versatile Input Compatibility: Compatible with pushbuttons, limit switches, and electronic proximity switches.
- LED Status Indicators: Sixteen green LEDs indicate the ON/OFF status for each input point.
- Low Voltage Module: Identified by blue bands on the label.
- Field Device Powering: Can power field devices from the module’s +24V OUT and 0V OUT terminals or an external supply.
Technical Specifications
| Feature | Specification |
|---|---|
| Rated Voltage | 24 volts DC |
| Input Voltage Range | 0 to +30 volts DC |
| Inputs per Module | 16 (one group with a single common) |
| Isolation | Optical: Field to Backplane (250 VAC continuous; 1500 VAC for one minute) |
| Input Current | 7 mA (typical) at rated voltage |
| On-State Voltage | 11.5 to 30 volts DC |
| Off-State Voltage | 0 to +5 volts DC |
| On-State Current | 3.2 mA minimum |
| Off-State Current | 1.1 mA maximum |
| On Response Time | 1 ms typical |
| Off Response Time | 1 ms typical |
| Power Consumption (5V) | 80 mA (all inputs on) from 5V bus on backplane |
| Power Consumption (24V) | 125 mA from isolated 24V backplane bus or user supplied power |
Applications
- Industrial automation and control systems
- Equipment monitoring and control
- Safety systems
